HAOQI Leopard Pro Step Thru Fat Tire Electric Bike

$2300.00 $1500.00

HAOQI Leopard Pro Step Thru Fat Tire Electric Bike

Description

Specification

  • Battery
    48V 20AH High-tech Battery
  • Motor
    750W High Speed Brushless Geared Motor
  • Bike Frame
    2″ * 18″ AL6061 M Mode
  • Display
    KDS-KD51C,USB LCD Display, Battery level, Speed,Distance Traveled, etc.
  • Charger
    US Standard 3.0A Smart Charger
  • Rear Cassette
    Shimano 7 Gears
  • Pedal Assist Intelligent
    5 Level Pedal Assist
  • Tires
    26″x 4″
  • Charging Time
    4~6 Hours
  • Product Weight
    72 lbs
  • Total Payload Capacity
    400 lbs
  • Recommended Rider Heights
    5.5″ ~ 6.8″

Components

  • Pedal
    Alloy pedal with reflectors
  • Bike Frame
    6061 Aluminum frame
  • Headlight
    48V LED light
  • Handlebars
    Premium ergonomic
  • Saddle
    Soft saddle
  • Kickstand
    Heavy duty aluminum
  • Seat post
    Diameter 30.4mm length 300mm
  • Spokes
    Steel ED
  • Brake Lever
    Alu alloy comfort grip levers with motor cutoff switch
  • Chain
    KMC chain
  • Freewheel
    Shimano 7 speed gear shift system
  • Brake
    Hydraulic Disc Brake
  • Stem
    Promax MA-570 adjustable angle 35° – 145° and 108mm extension stem.
  • Crank
    170mm Forged Alloy
  • Gearing
    Shimano- 14-28T BROWN/BK
  • Front Fork
    Alloy front suspension fork with lockout and adjustment
  • Throttle
    Half twist throttle

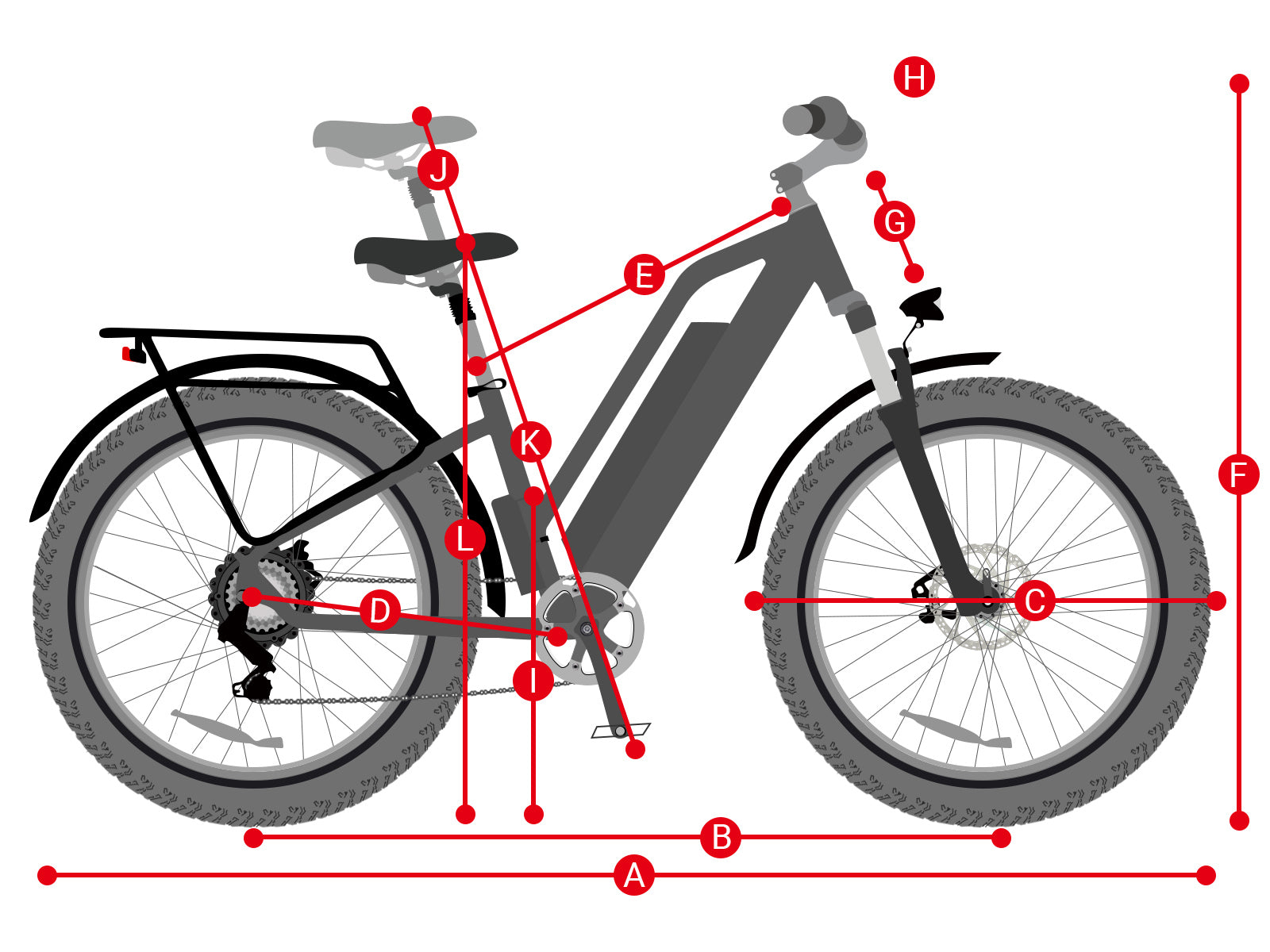

Geometry

HAOQI Leopard Pro Fat Tire Electric Bike
  • A :
    Total Length 75″
  • B :
    Wheelbase 45″
  • C :
    Wheel Diameter 28″
  • D :
    Chain Stay Length 19″
  • E :
    Top Tube Length 22.5″
  • F :
    Handlebar Height 46.5″
  • G :
    Head Tube Length 5.9″
  • H :
    Handlebar Length 26″
  • I :
    Standover Height 31″
  • J :
    Maximum Seat Height 36.5″
  • K :
    Handlebar Length 33″
  • L :
    Minimum Height to Ground 38″
